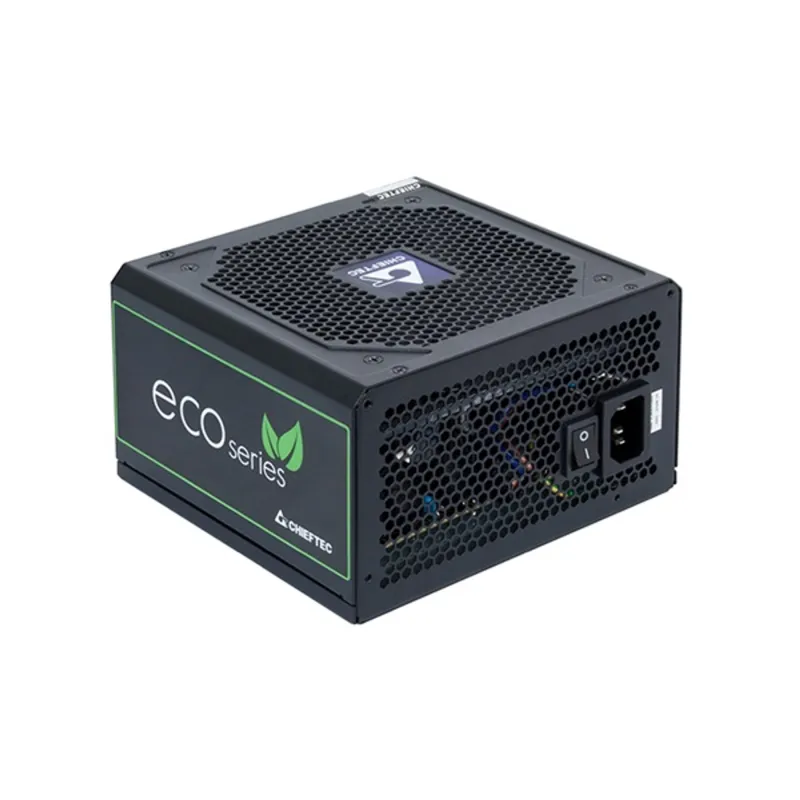

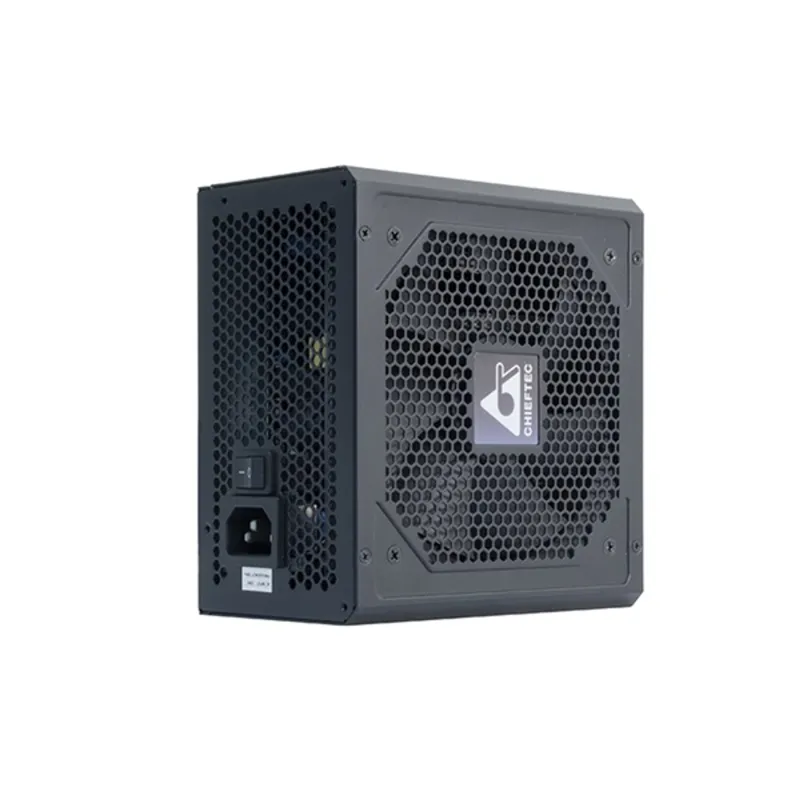

CHF GPE-600S Chieftec ATX PSU ECO series GPE-600S, 600W Box

Specifikáció: ATX 12V 2.3
Hatékonyság: >85%
Méret (MéxSzéxMa): 140 mm x 150 mm x 86 mm
PFC: Active PFC (0,9)
Fan: 120mm halk



Biztonság:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
AFC (Automatic Fanspeed Control)



AC Input: 230V / 6,3A
Frequency: 50 Hz
+5V: 22A
+3,3V: 22A
+5V & +3,3V combined: 120W
+12V 1: 45A / 540W
+12V 2: N/A
+12V 1 & +12V 2 combined: N/A
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VSB: 2,5A / 12,5W
Maximum Load: 600W



24PIN:
===400mm===[24PIN]
SATA / Molex:
===350mm===[SATA]===150mm===[SATA]===150mm===[SATA]===150mm===[Molex]
SATA / Molex:
===350mm===[SATA]===150mm===[SATA]===150mm===[SATA]===150mm===Molex]
6+2 PCIe:
===450mm===[6+2 PCIe]===150mm===[PCIe]
8PIN EPS (4+4):
===500mm===[8PIN EPS]
