DIGITUS Bar Code Label Printer 200dpi Thermal Direct/Transfer USB LAN Serial

TECHNICAL DETAILS

Resolution 203 DPI

Printing method thermal transfer / direct thermal

Max. Print speed: 127 mm (5") / s Max.

Max. Print width/length: 108mm (4.25") / 2286mm (90")

Print media: continuous, gap, black mark, fanfold and perforation

Media width/thickness: 25.4-118mm (1.0-4.6") / 0.06-0.254mm (2.36-10mil)

Media core diameter 25.4-76.2mm (1-3")

Label length 10-2286mm (0.39-90")

Label roll capacity 127mm (5") (outer diameter)

Ribbon capacity Max: 300m

Ribbon width: 110mm

Ribbon core inner diameter: 25.4mm (1")

Performance Features: Processor 32-bit CPU

Memory 4MB flash memory, 8MB SDRAM, SD card reader for flash memory expansion, up to 4GB

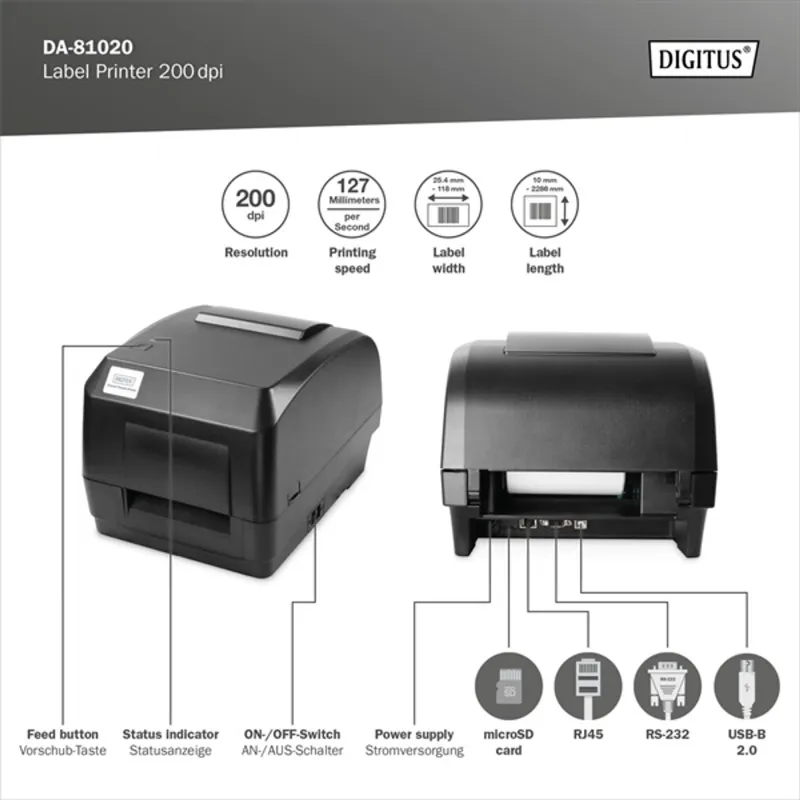

Interface: USB2.0/Serial/Ethernet

Internal fonts: 8 alphanumeric bitmap fonts, Windows fonts can be downloaded from software.

1D barcode: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11

2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec

Rotation: 0°, 90°, 180°, 270°

Emulation: TSPL, EPL, ZPL, DPL

Dimensions 302,5mm (D) x 234mm (W) x 194,8mm (H)

Weight 2.6kg

PACKAGE CONTENT

1x Label Printer

1x Power supply

1x USB cable

1x Test label paper

2x Label role receptacle

1x Cardboard sleeve

1x Ribbon

1x Ribbon recycling roll

2x Ribbon screw

1x QIG
